Openterface uConsole KVM Ext. Module V2
Openterface uConsole KVM Ext. Module V2
Couldn't load pickup availability
The Openterface uConsole KVM Extension Module v2 turns your uConsole into a portable KVM console, network debug terminal, and SD card utility module.

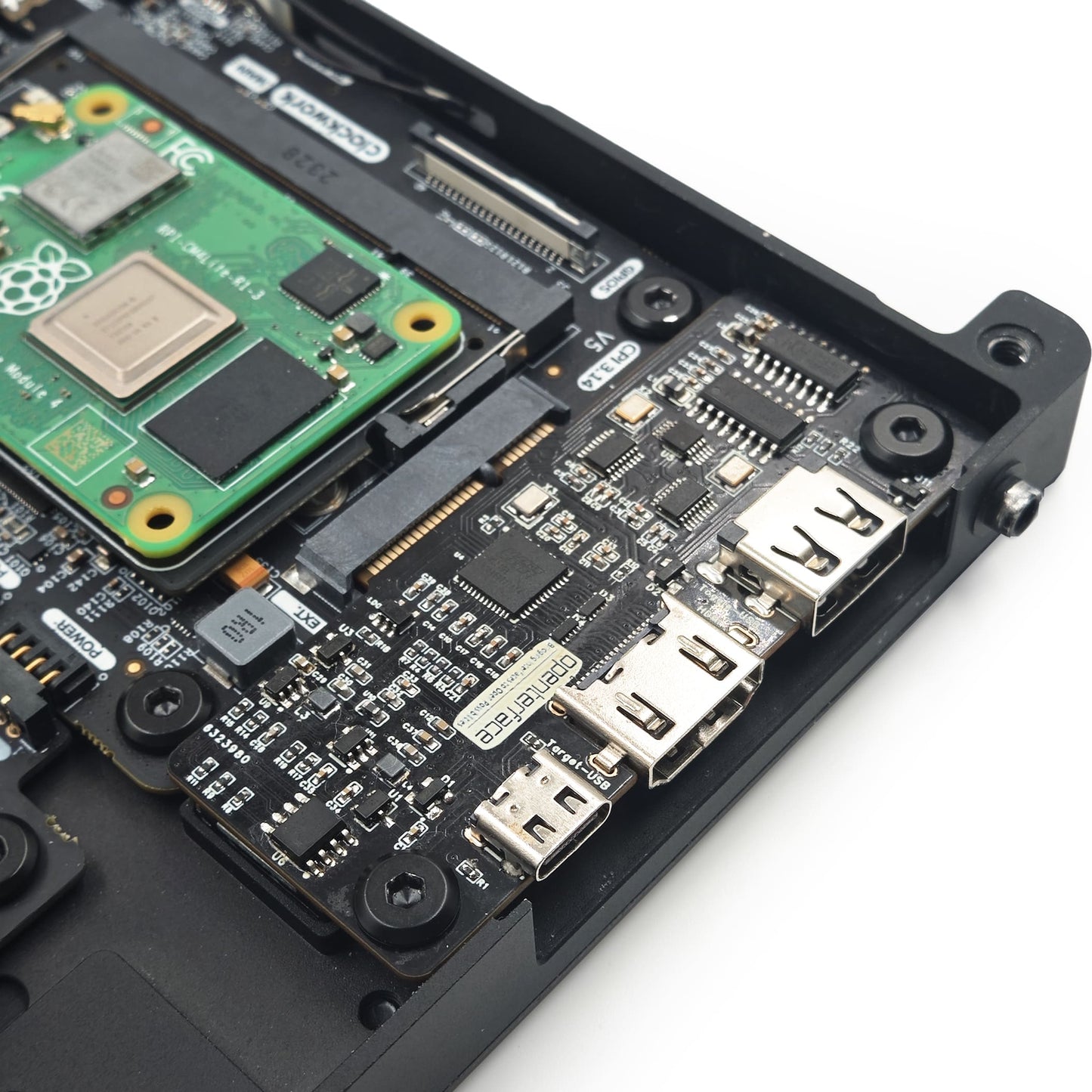

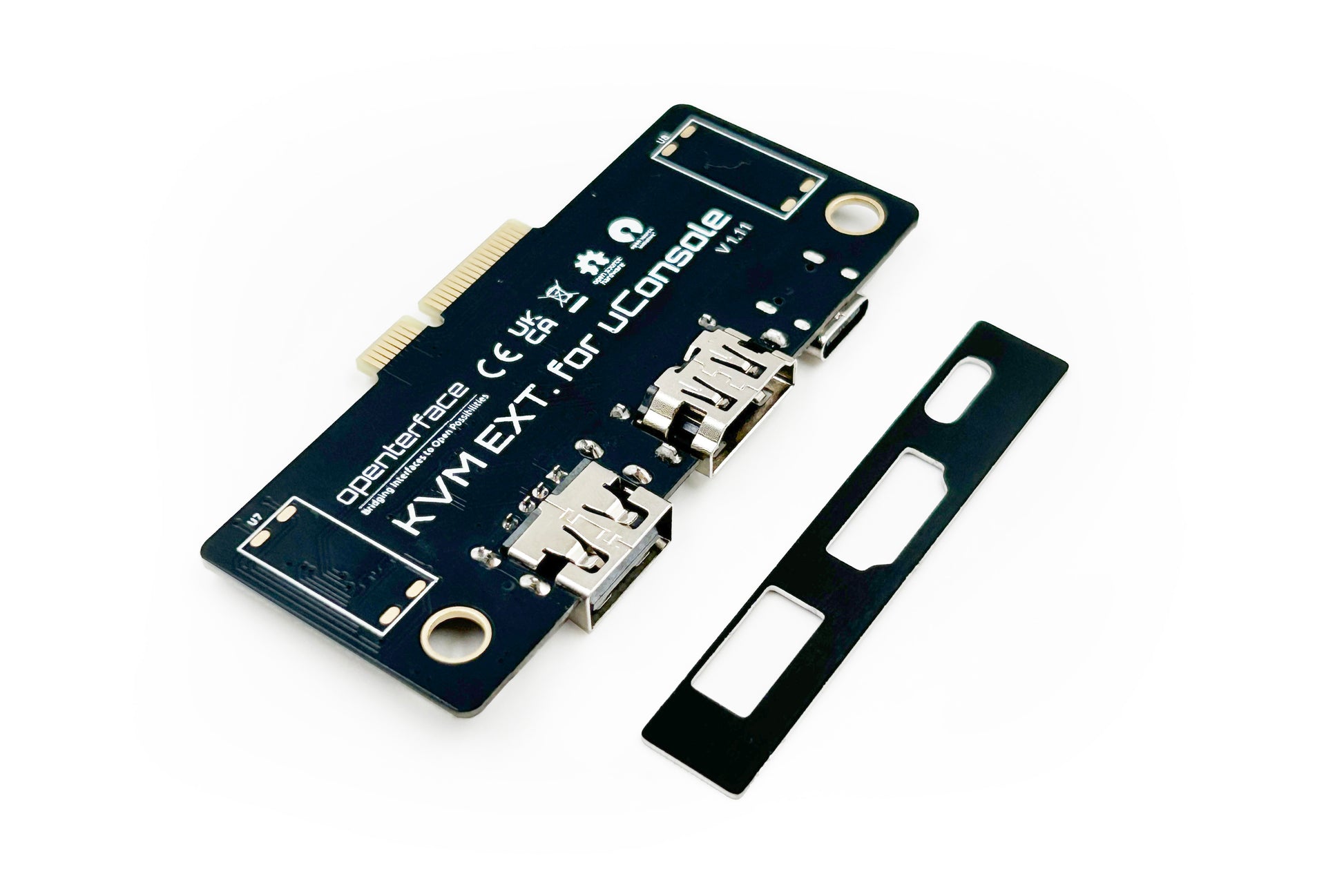

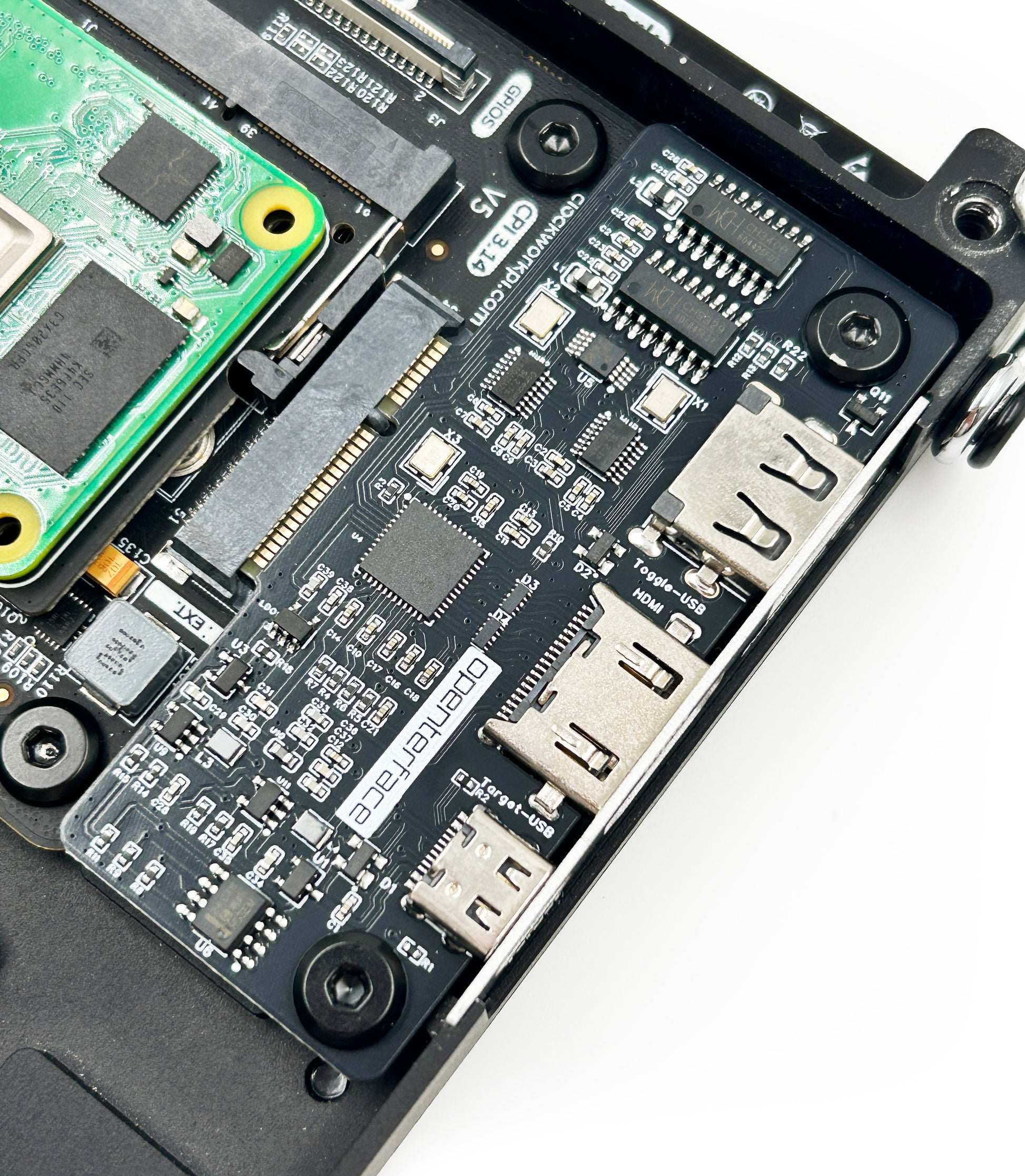

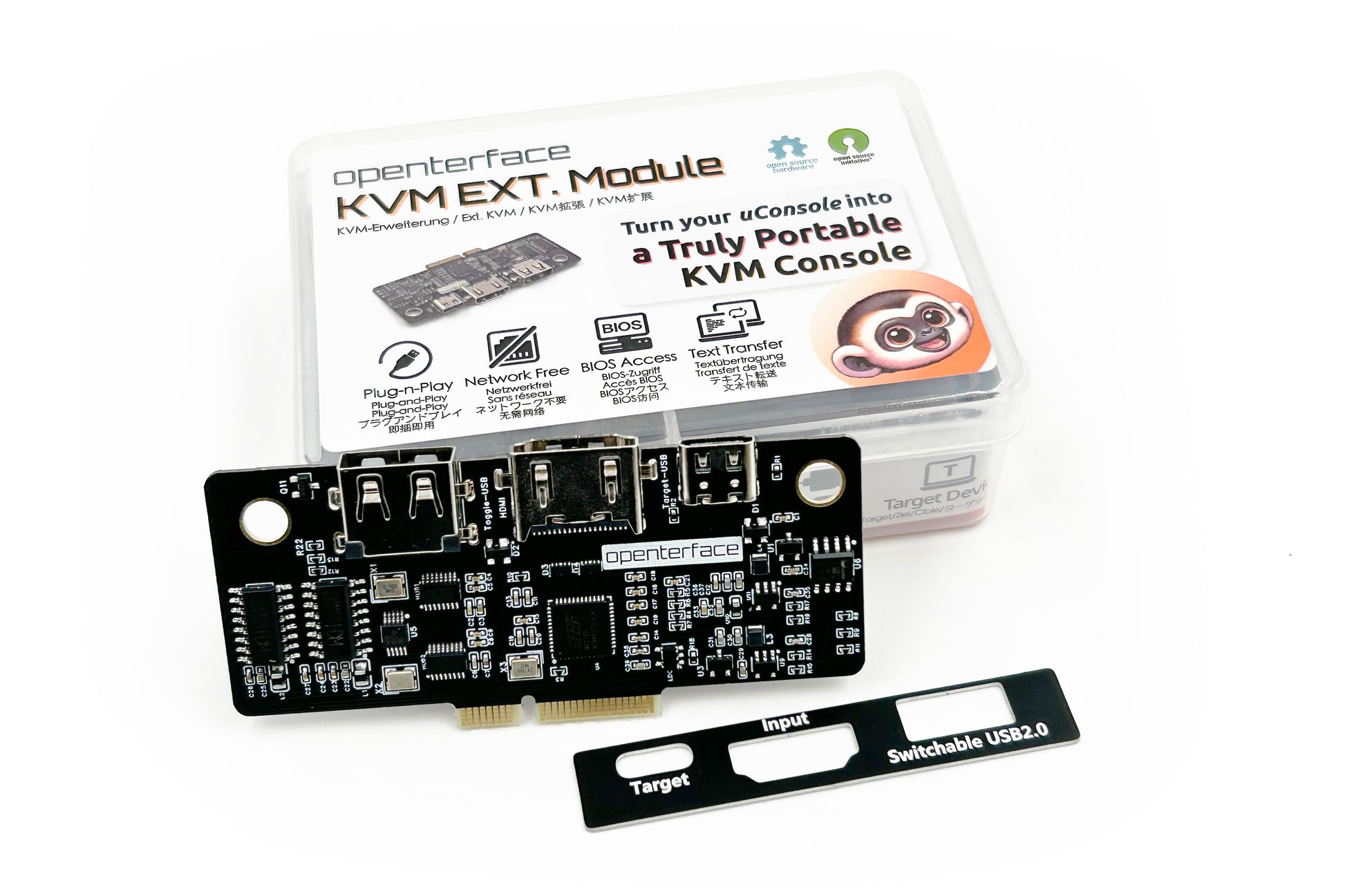

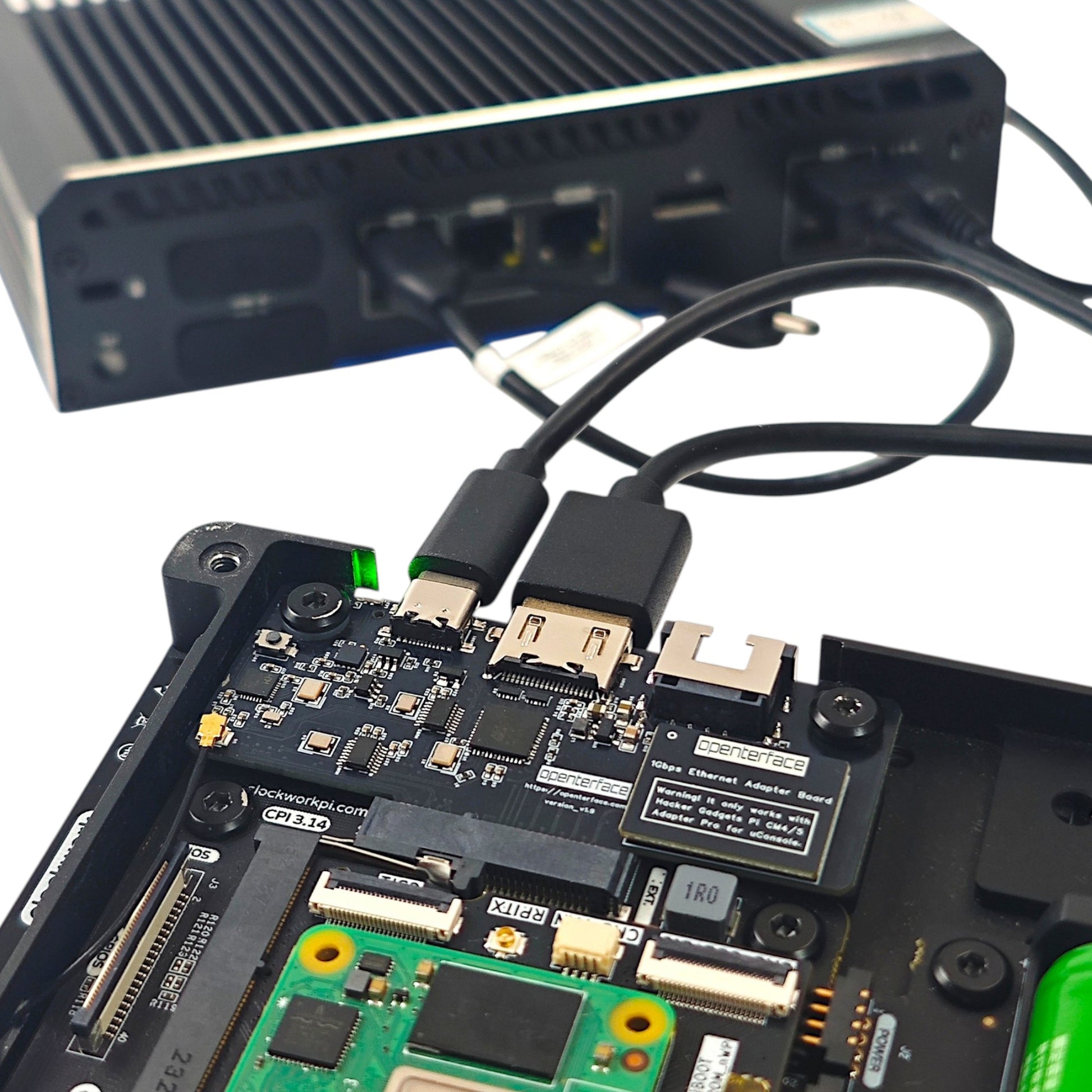

This plug-in extension module fits directly into the uConsole expansion slot and gives your uConsole direct HDMI input, USB HID keyboard and mouse control, Ethernet expansion, SD card read/write, and USB 2.0 shared switching.
Built for IT professionals, homelab builders, embedded developers, network engineers, and field technicians, this product helps you manage headless devices, debug single-board computers, handle network maintenance, and work with SD cards without carrying extra screens, keyboards, or external card readers.
Single SKU Notice:

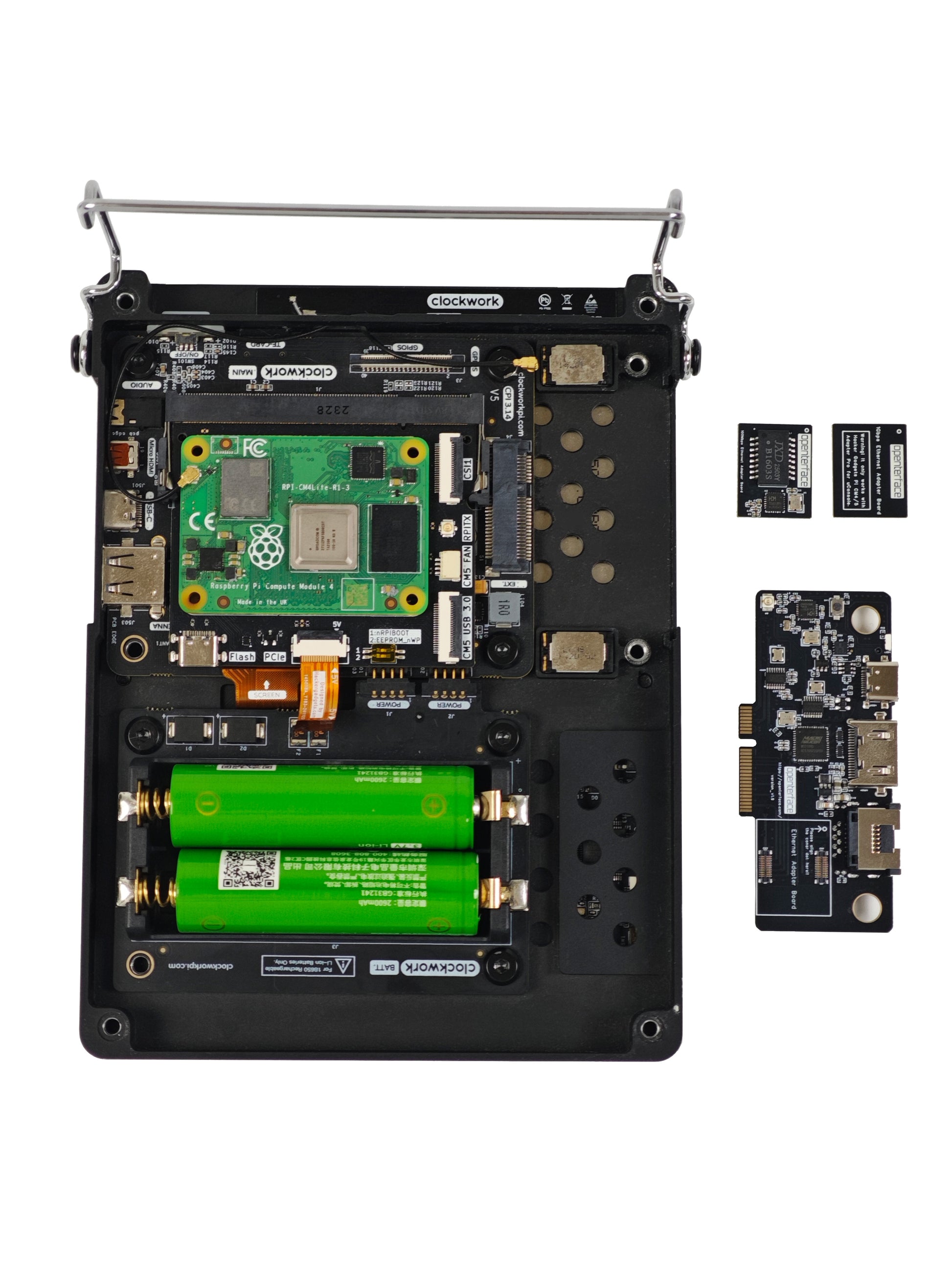

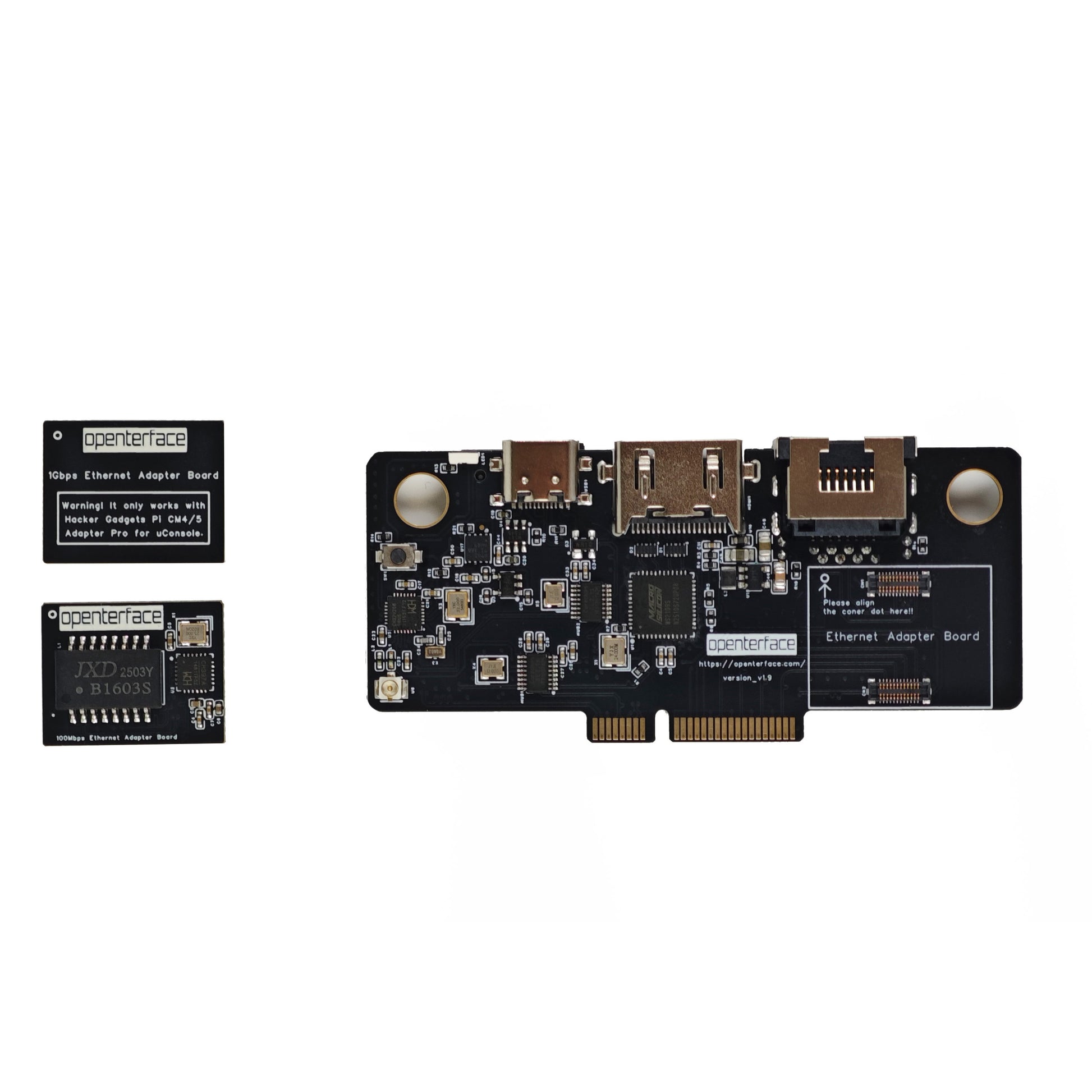

Extension Module v2 includes both the 100M and 1000M Ethernet cards in the box. It is one product, not two separate network versions.
Purchase Options
| Option 1 | Option 2 | |
|---|---|---|
| Product Option | Extension v2 Only | Extension v2 + HackerGadgets uConsole Upgrade Kit |
| Main Product | Includes the Openterface uConsole KVM Extension Module v2 | Includes the Openterface uConsole KVM Extension Module v2 and the HackerGadgets uConsole Upgrade Kit |
| Network Cards | Includes both network cards in the box | Includes both network cards in the box |
| 100M Ethernet Card | Works with all uConsole base boards | Works with all uConsole base boards |
| 1000M Ethernet Card | Included, but requires the uConsole Upgrade Kit for gigabit operation | Ready for gigabit operation with the included Upgrade Kit |
| Best For | Users who already have the uConsole Upgrade Kit, or only need 100M Ethernet | Users who need gigabit Ethernet and do not already have the Upgrade Kit |

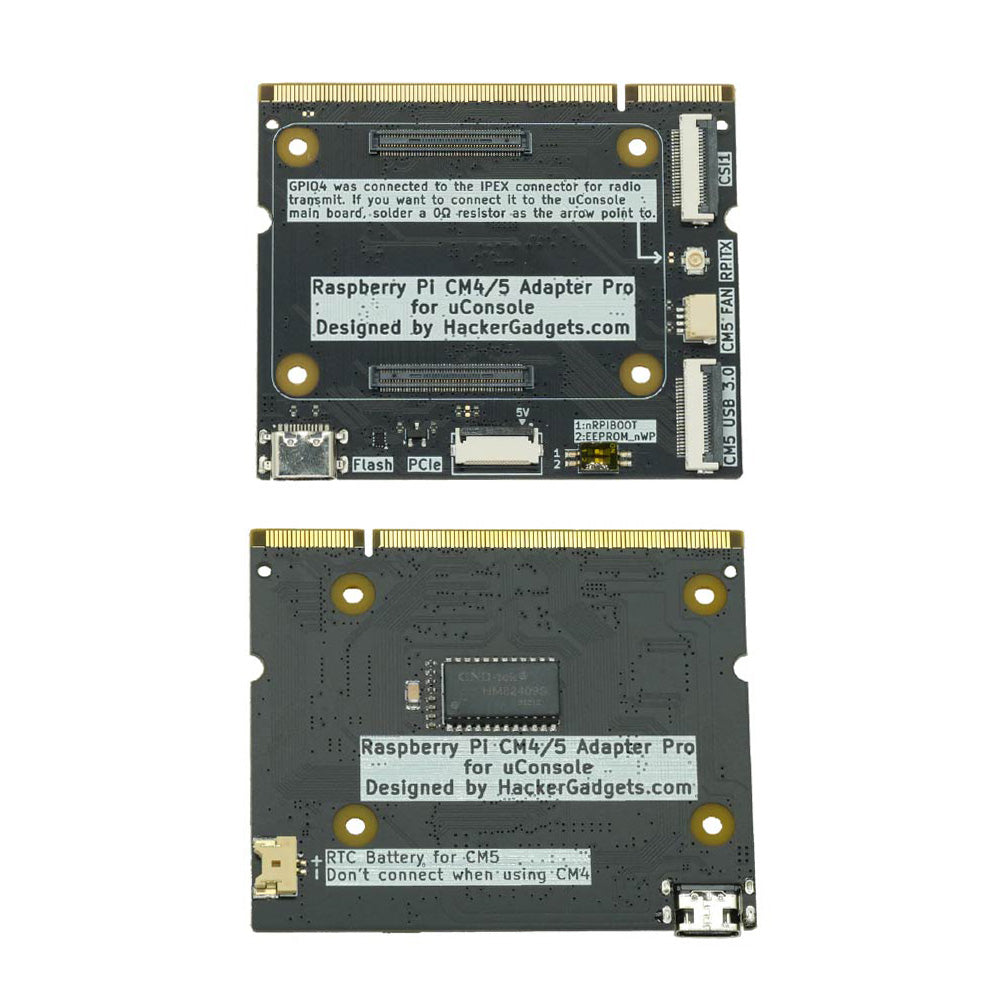

Learn more about the uConsole Upgrade Kit from HackerGadgets.

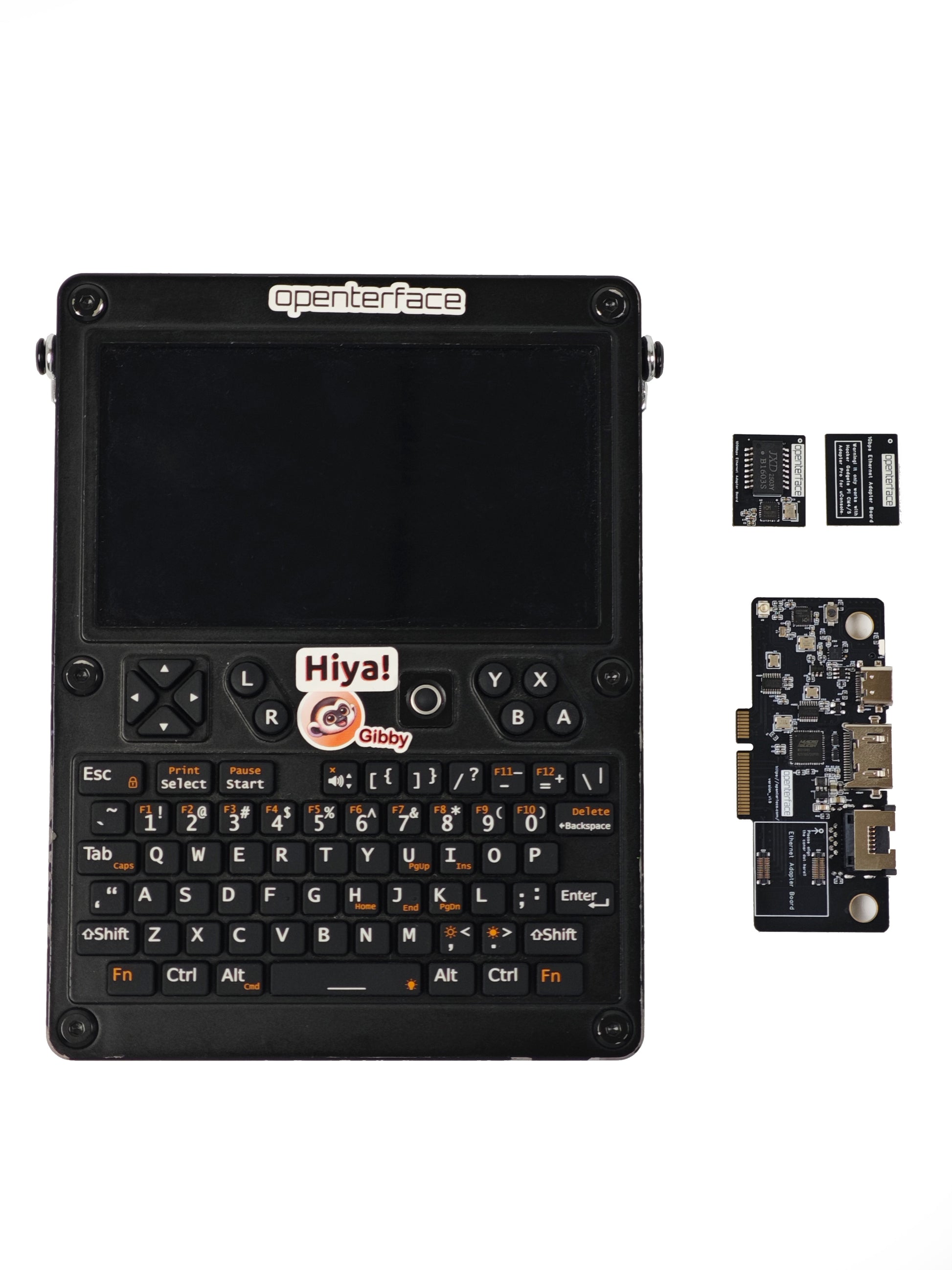

❗️Please note: The ClockworkPi uConsole device is not included. Product photos are for demonstration purposes only.
⭐ Key Features
🎮 Direct KVM Control

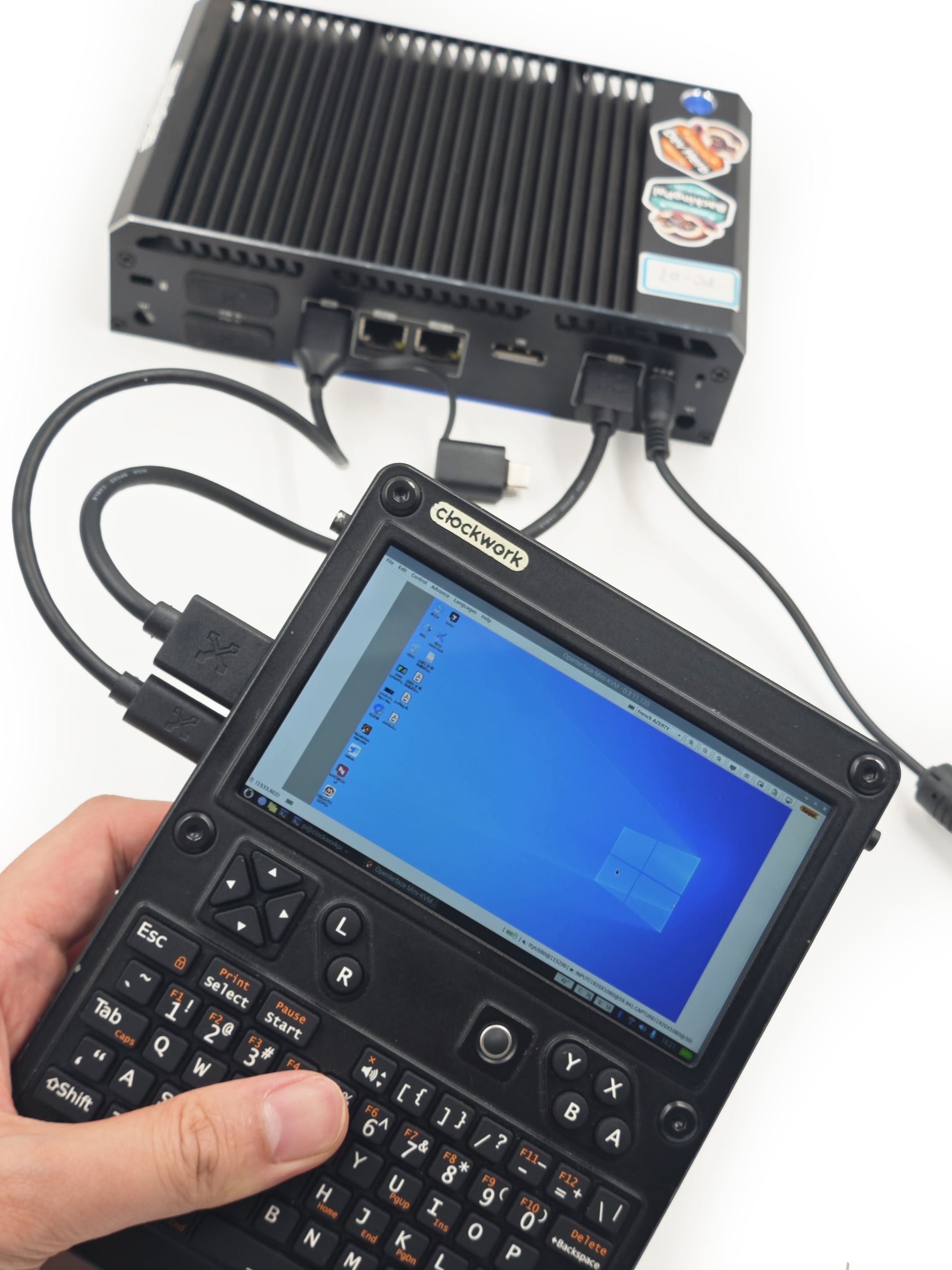

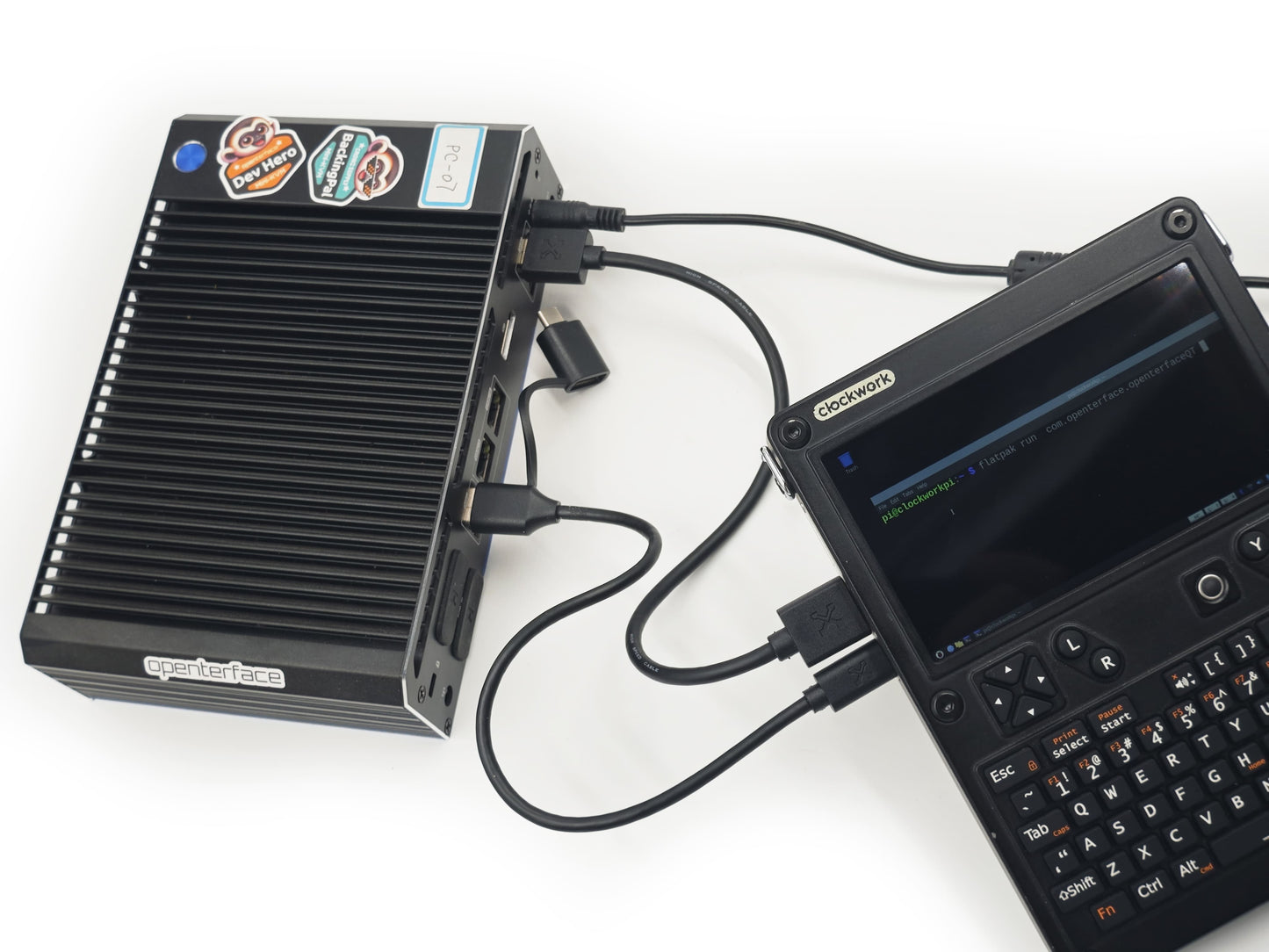

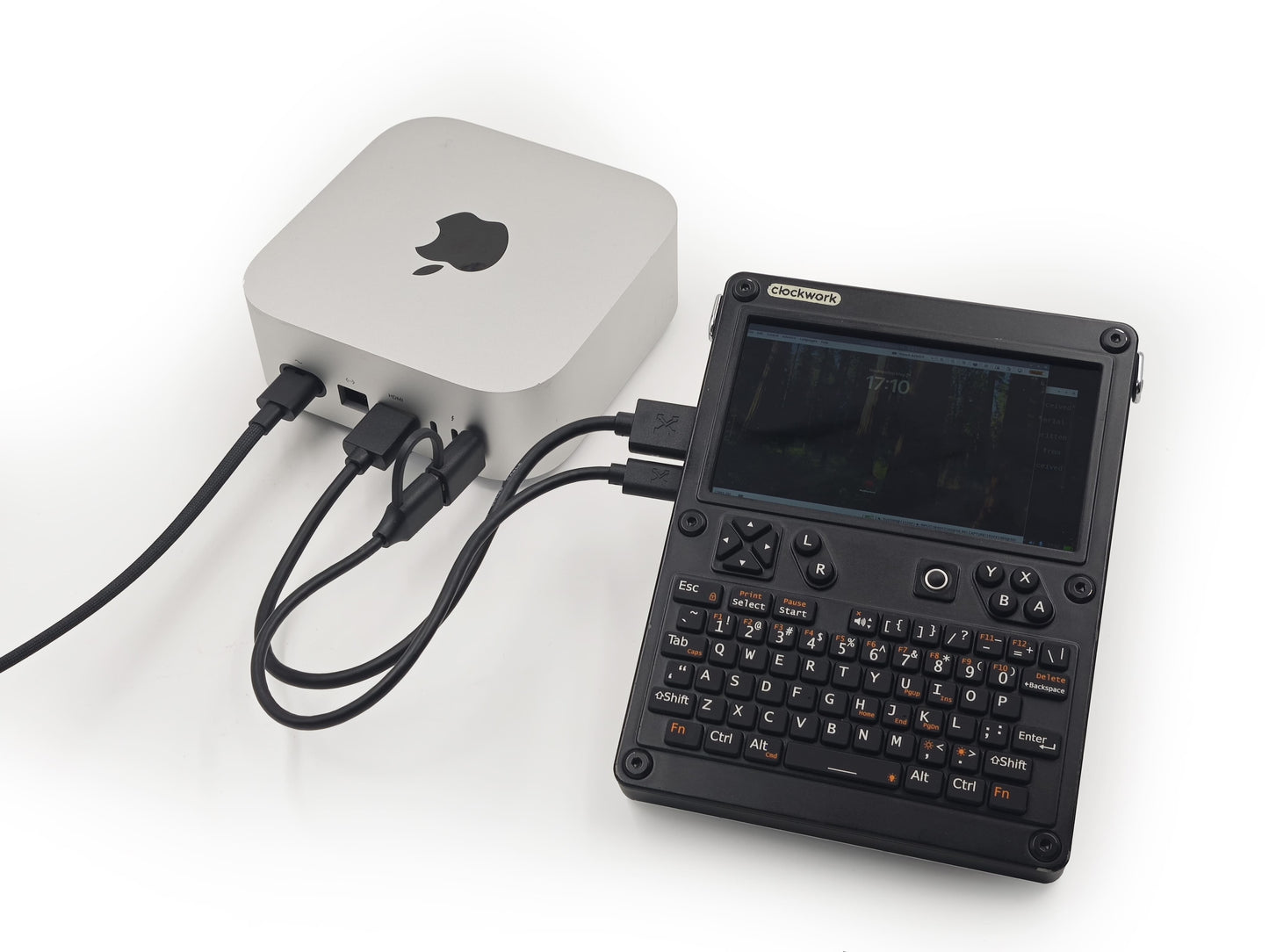

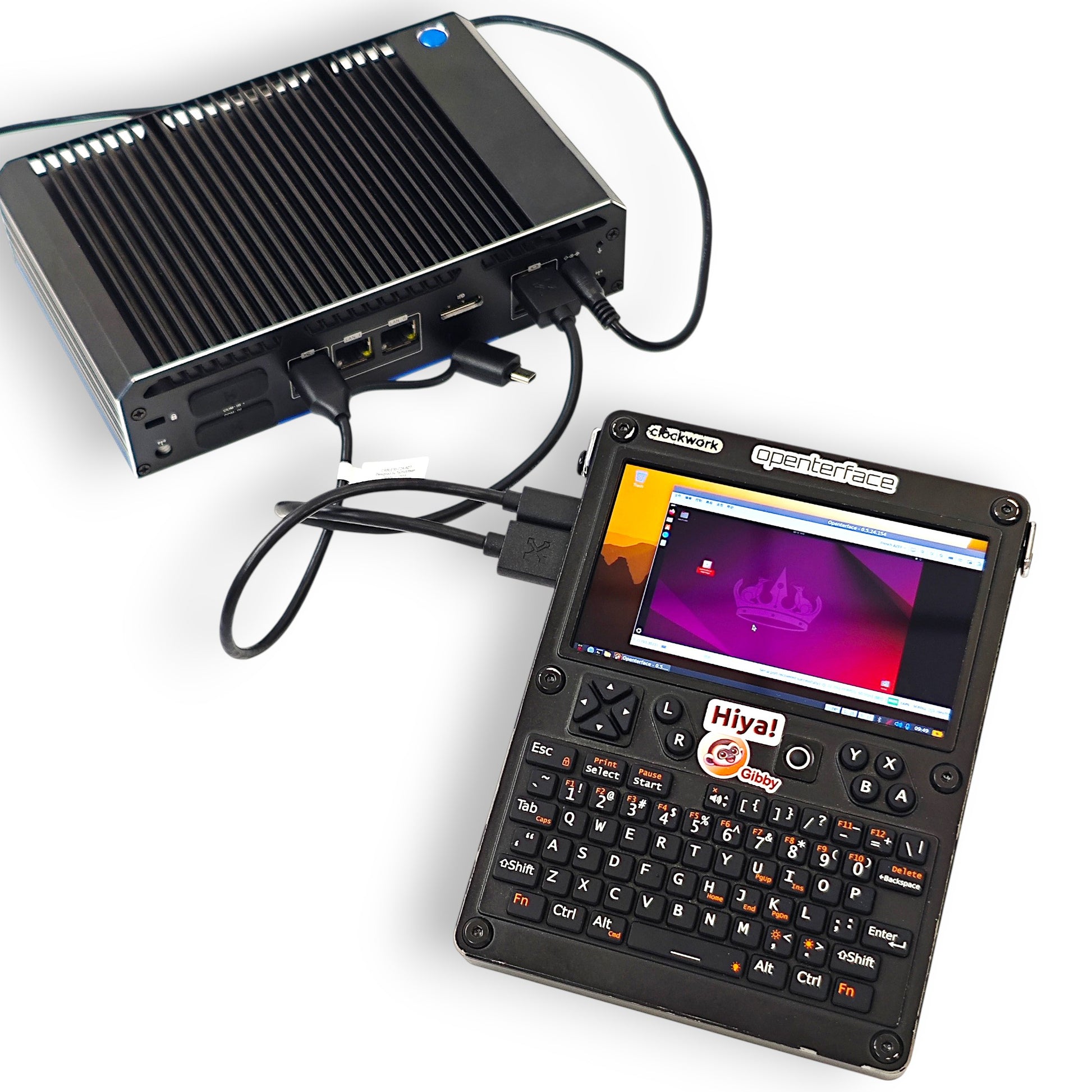

Use your uConsole to view and control a target device through HDMI input and USB HID keyboard/mouse emulation. Ideal for BIOS access, operating system installation, headless server recovery, and SBC debugging.
🌐 Dual Network Card Support

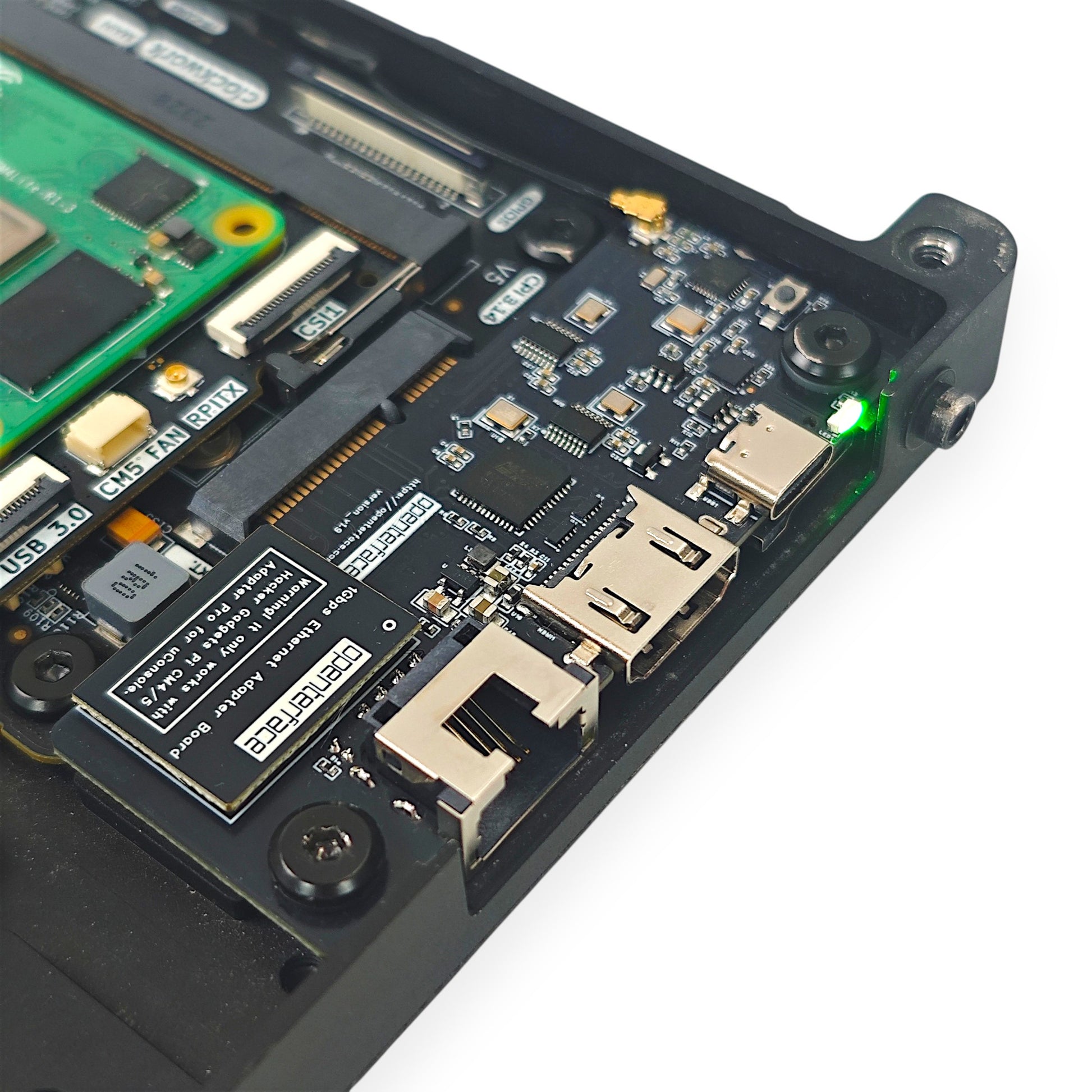

Both 100M and 1000M Ethernet cards are included. Use the 100M card for universal compatibility, or use the 1000M card with the uConsole Upgrade Kit for gigabit networking.
💾 SD Card Read/Write

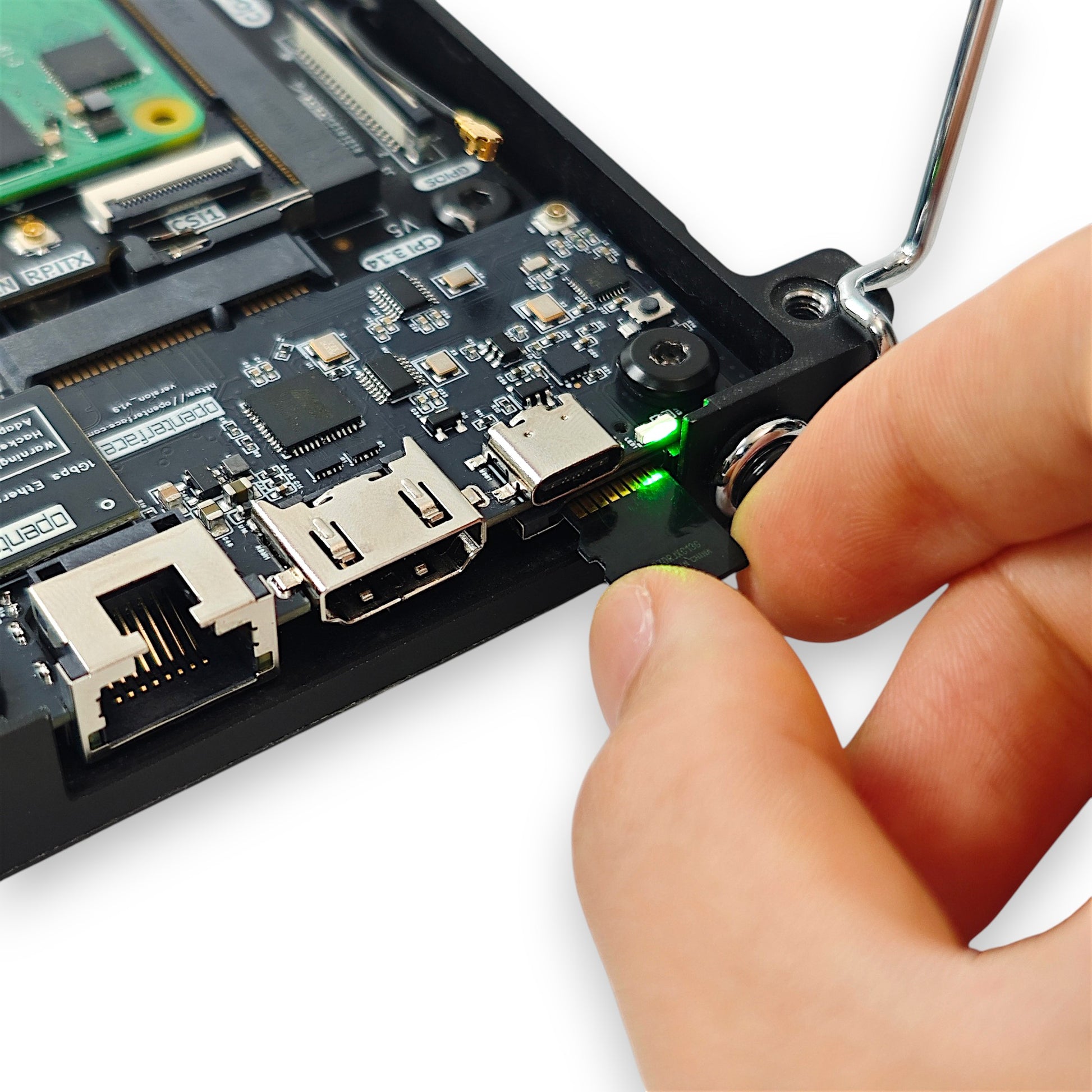

Write images, export logs and transfer files directly from your uConsole without carrying an external card reader.
🔁 USB 2.0 Shared Switching
Switch USB access between the uConsole and the target device for flexible debugging, storage, and maintenance workflows.
⚡ Low Latency Operation
With video latency under 70 ms, Extension Module v2 offers responsive control for firmware access, system maintenance, bare metal debugging, and quick diagnostics.
🧳 Portable and Slot Powered

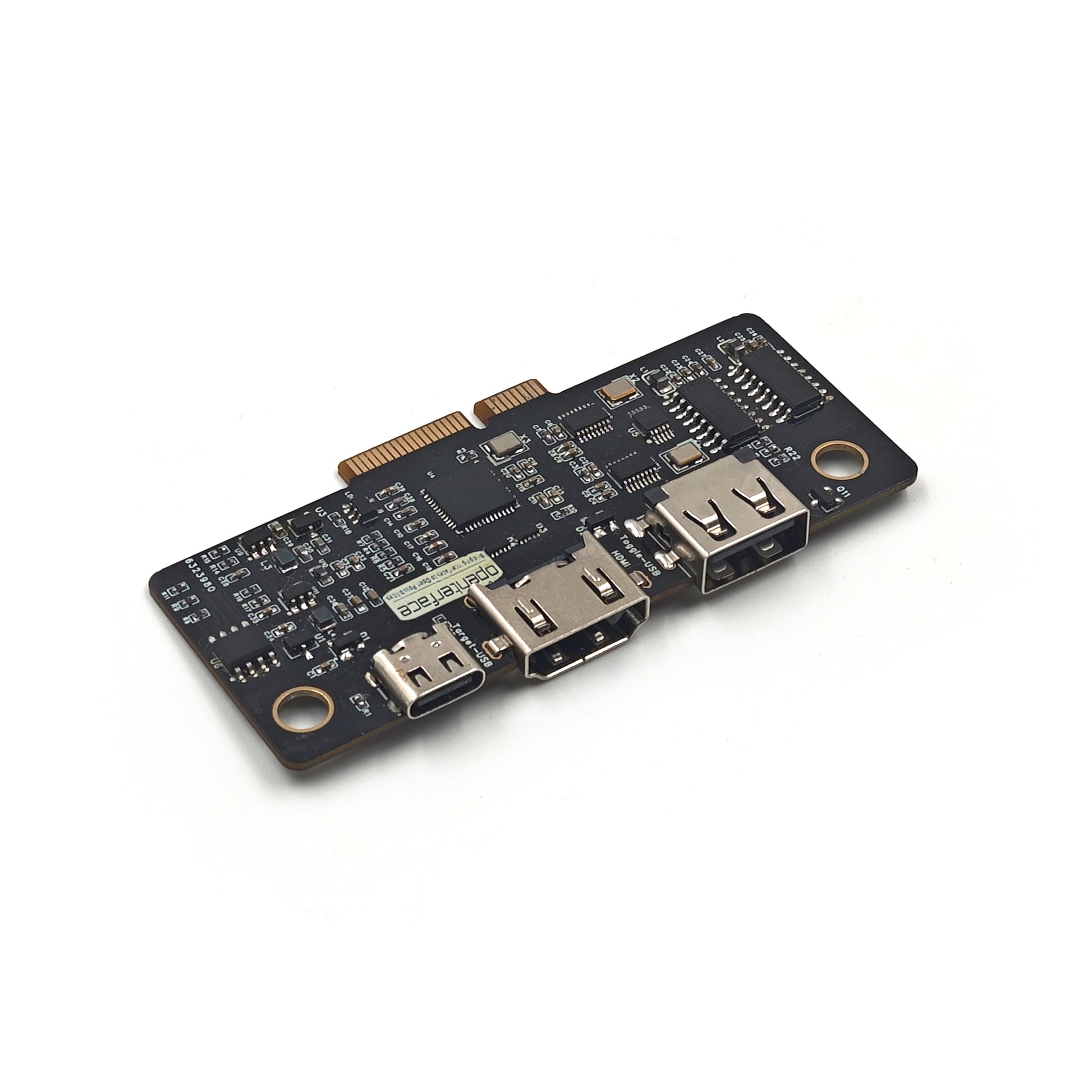

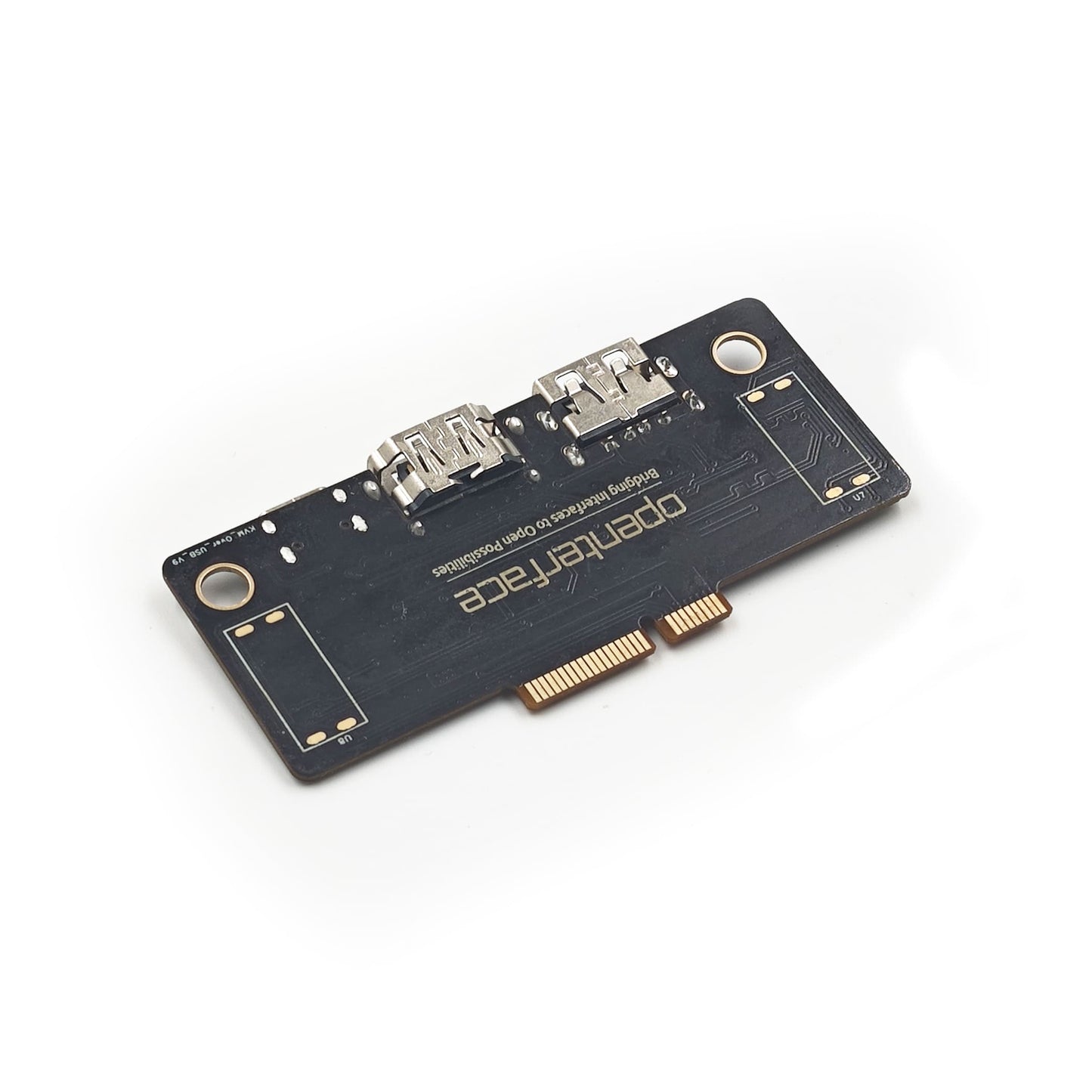

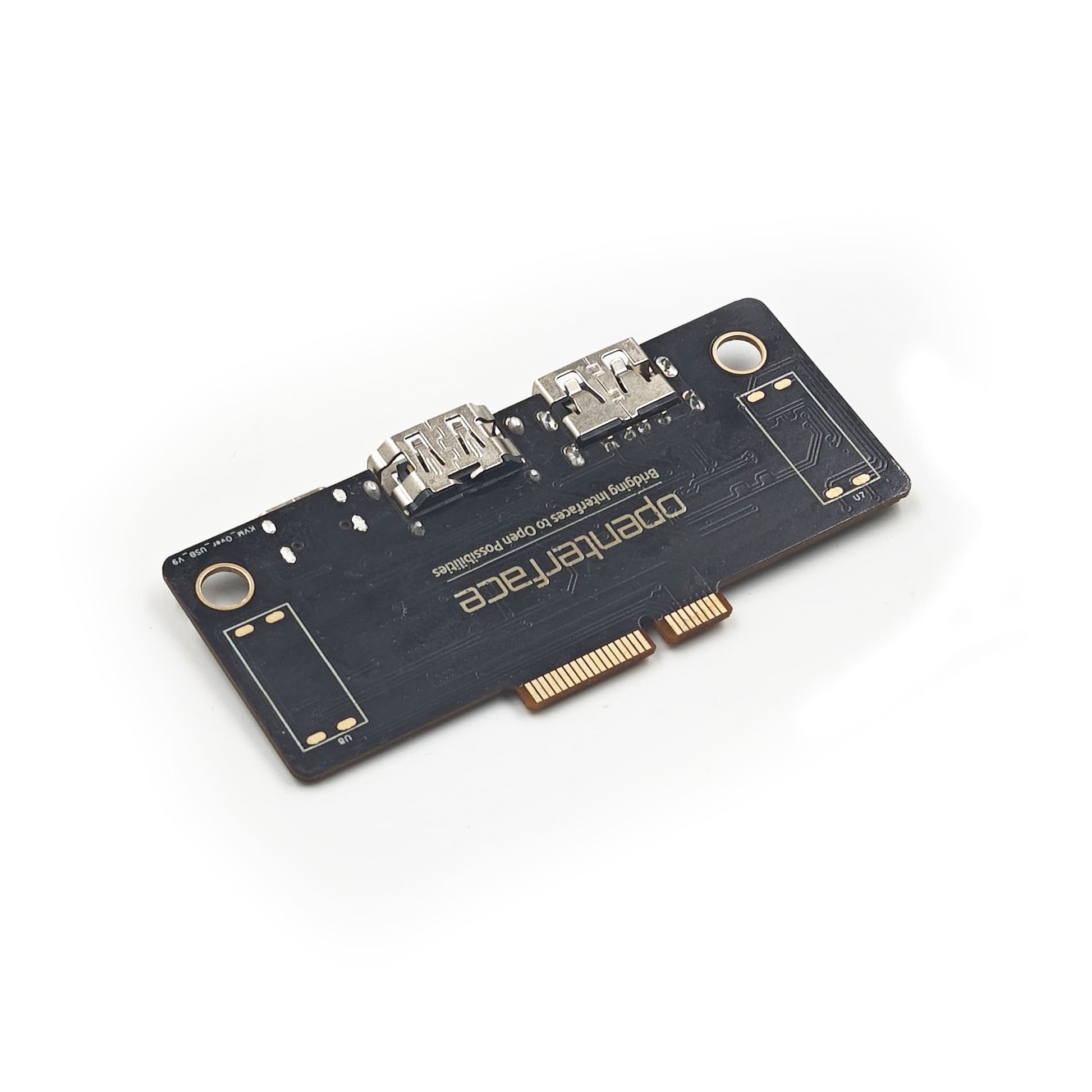

Compact 77.3 x 34.7 mm design, powered directly from the uConsole expansion slot. No external power adapter required.
🔧 Open Source Aligned
Built on the Openterface KVM platform, compatible with our open source software ecosystem, and maintained through ongoing community feedback.
💡 Use Cases
IT and network maintenance
Access servers, routers, and headless appliances directly from your uConsole.
Embedded development
Test and debug SBCs, development boards, and custom hardware without setting up external monitors.
Field service and diagnostics
A compact on the go KVM solution for technicians working across multiple hardware environments.
Network troubleshooting

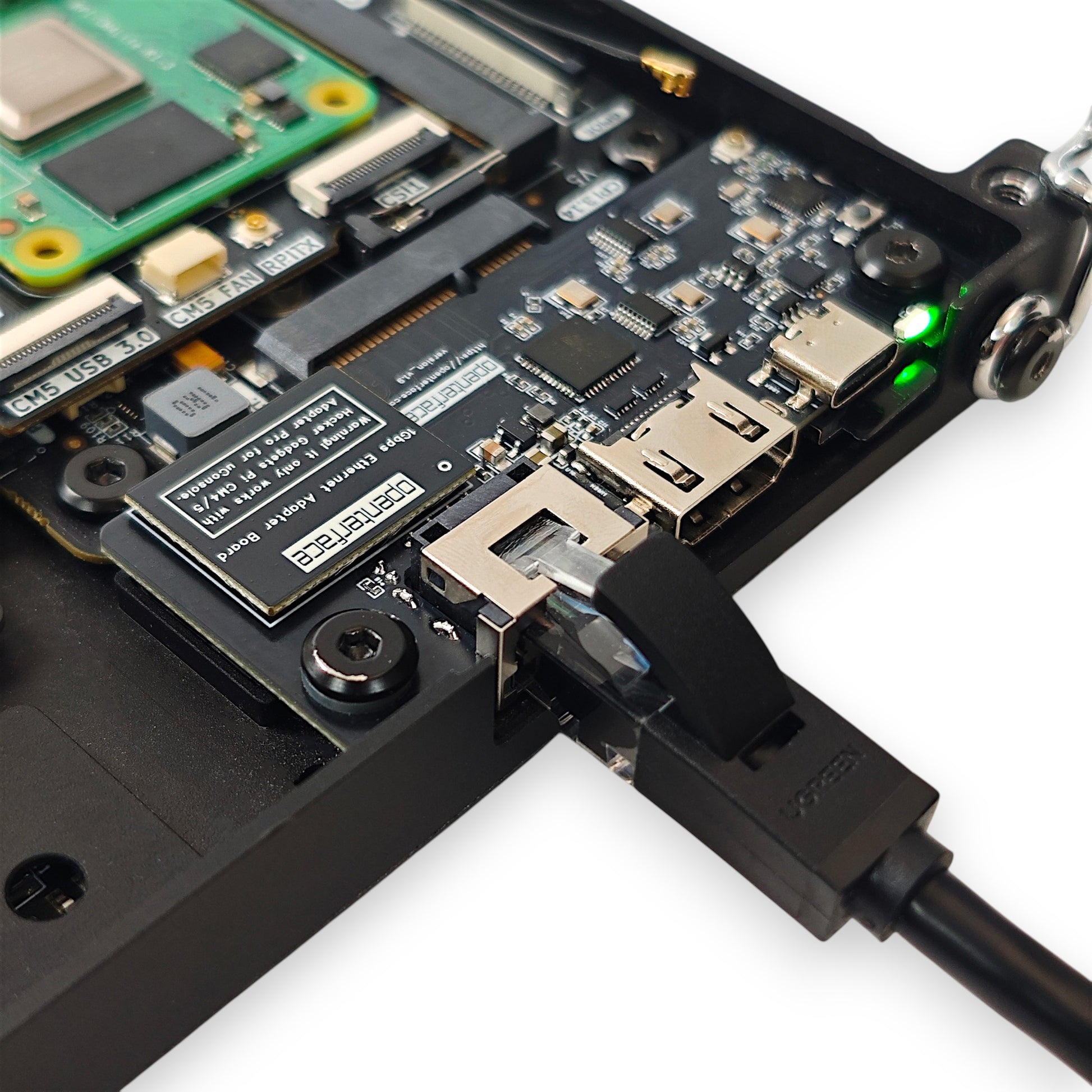

Use Ethernet for SSH, web management, log capture, and maintenance tasks.
SD card workflows
Write images, move logs and transfer files directly from your uConsole.
📋 Specifications
| Item | Specification |
|---|---|
| Product Name | Openterface uConsole KVM Extension Module v2 |
| Video Input | HDMI up to 4K@30Hz RGB/YCBCR444, or 4K@60Hz YCBCR420 |
| Video Output | 1080p@60Hz to the uConsole screen |
| Latency | <70 ms |
| KVM Control | USB HID keyboard and mouse emulation |
| Network | 100M works with all uConsole base boards; 1000M requires the uConsole Upgrade Kit |
| SD Card Function | SD card read/write |
| USB Sharing | USB 2.0 shared switching between uConsole and target device |
| USB Speed | USB 2.0 Full Speed, 12 Mbps |
| Target Platforms | Windows, macOS, Linux, x86 systems, and ARM SBCs |
| Power | Powered by the uConsole expansion slot |
| External Power | Not required |
| Board Size | 77.3 x 34.7 mm |
💻 Software Setup
To use the KVM function, install the official Openterface software on your uConsole. Detailed instructions are available here: Openterface KVM Extension Software Setup.
The target device does not need additional software or drivers for keyboard and mouse control. Extension Module v2 uses USB HID emulation for direct input.
🤨 FAQs
Q: Is Extension Module v2 one product or two network versions?
A: It is one product. Both the 100M and 1000M Ethernet cards are included in the box.
Q: Which Ethernet card should I use?
A: Use the 100M card for all uConsole base boards. Use the 1000M card only if you have the uConsole Upgrade Kit and need gigabit networking.
Q: Do I need the HackerGadgets uConsole Upgrade Kit?
A: Only for gigabit Ethernet. The 100M card works without the Upgrade Kit. If you do not already have the kit, choose the bundle option or purchase the kit separately.
Q: Can I use this together with the 4G or LTE module?
A: No. This module uses the uConsole expansion slot, so it cannot be used at the same time as the 4G or LTE module.
Q: Does the target device need software or drivers?
A: No. The KVM function uses USB HID keyboard and mouse emulation, so the target device does not need special software for keyboard and mouse control. Learn more about USB based KVM technology.
Q: Is the software open source?
A: Yes. The Openterface Connect Apps are open source and available on our GitHub repository.
If you have any questions about this product, installation, or compatibility, feel free to contact us at shop@techxartisan.com. We are always ready to help.
Share
Works flawlessly and makes the uconsole really useful!
Hard to install software and usb switching port does not work. Else a really neat package.
it was hard having the software to run.
the keyboard and mouse are not working.
there is a lag in hdmi input.

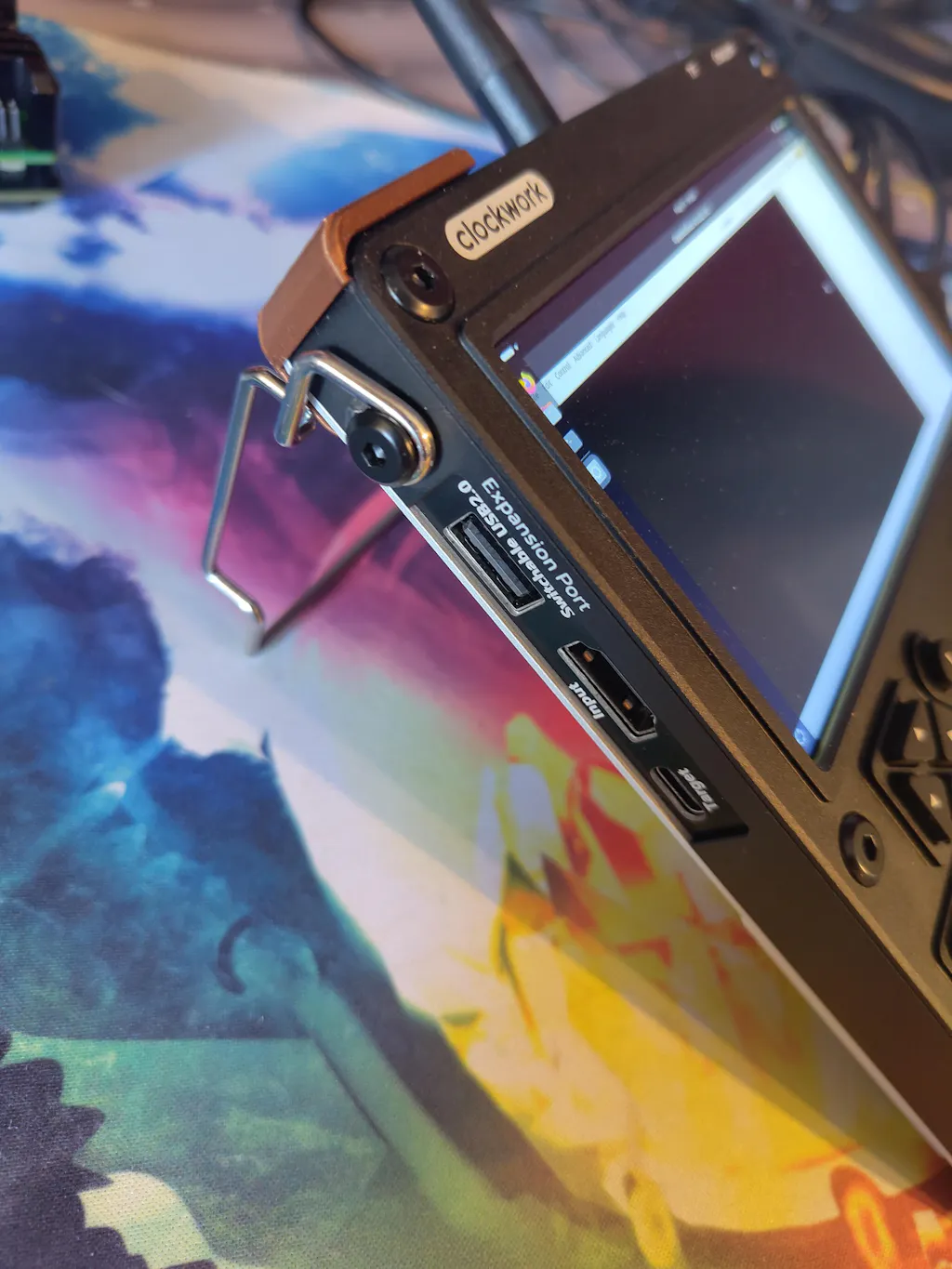

Great device for the on the go IT pro. I've found it super handy to have a KVM built into my daily carry. No more looking for a monitor or keyboard!

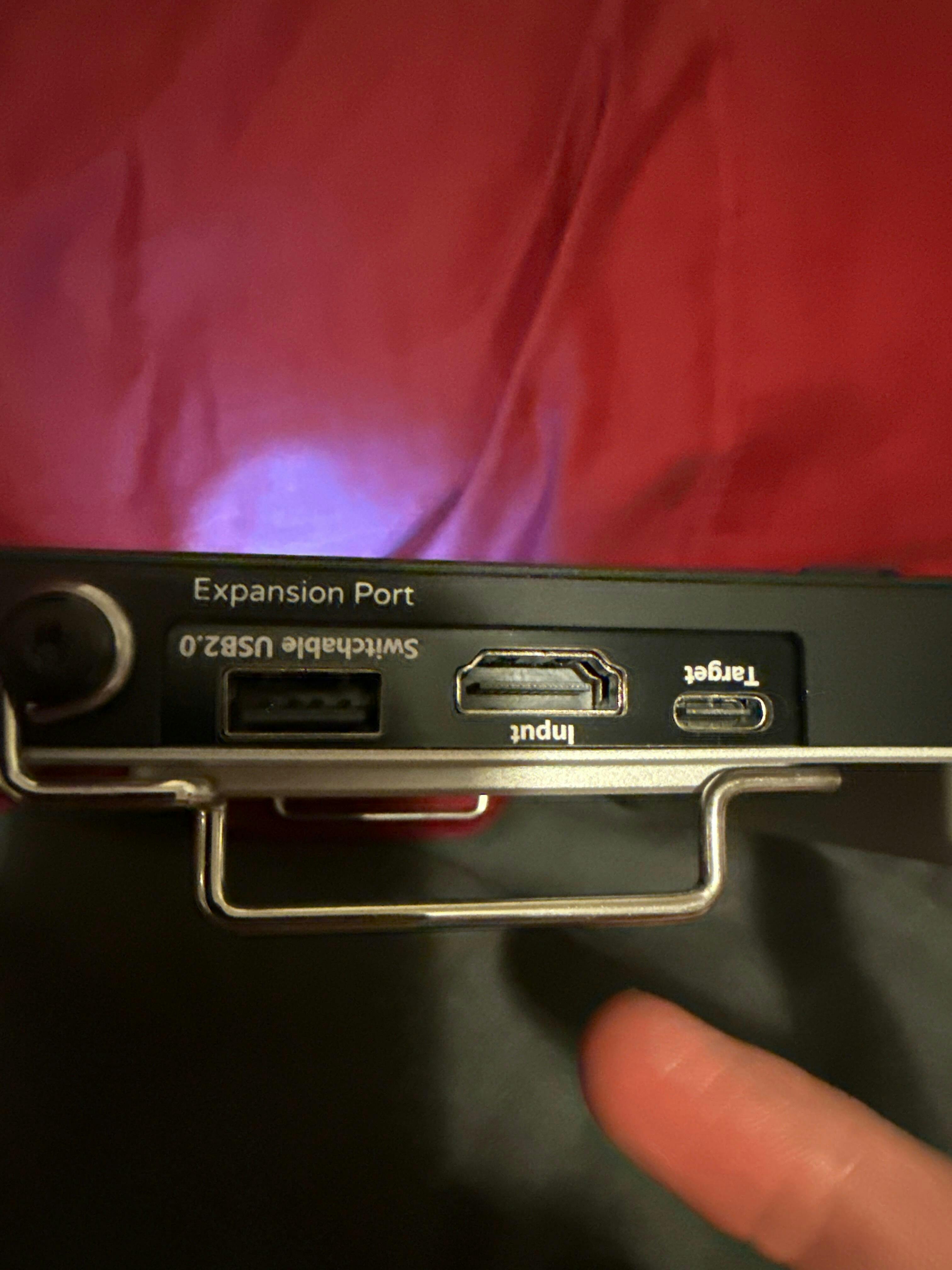

The HDMI only displays in a box on the UConsole. There is no menu to change app settings. No mouse control on either Windows or Linux Host. Text is upside down on the port cover.
Thanks for reporting this and sorry for the trouble you’re experiencing. We’ll make sure to get this sorted.

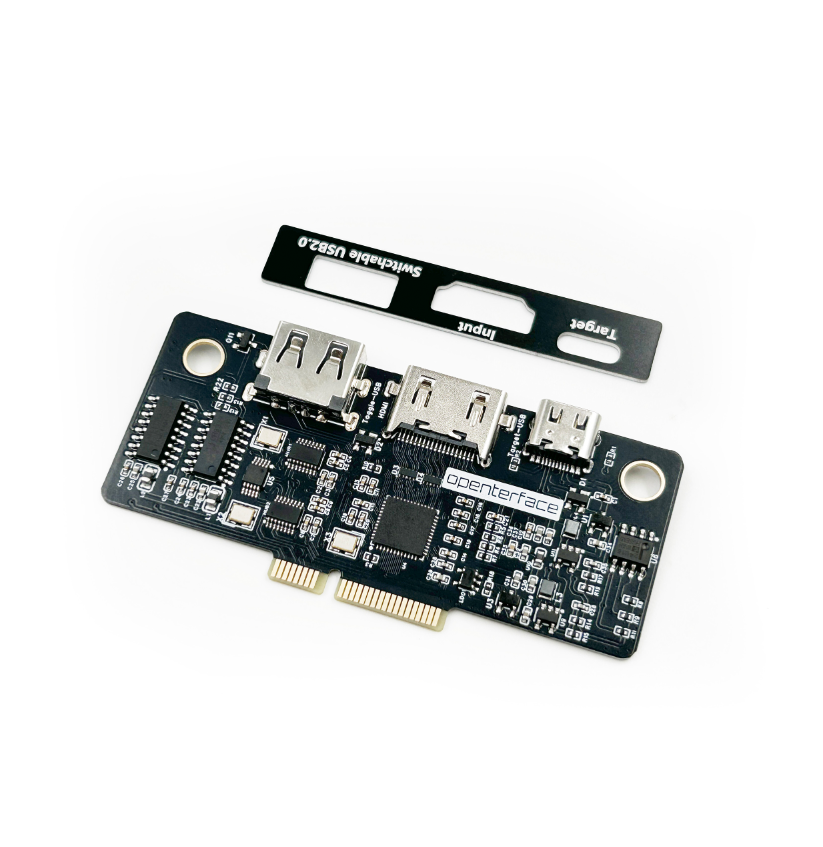

Regarding the text on the port cover: the orientation was designed so that when you hold the uConsole and look down at the ports from the top, the text is readable. It may appear upside down depending on the viewing angle, but this was intentional to make port identification easier.
For the mouse control issue, could you please share:
Which Linux distribution you’re using on your uConsole?
Is it running on the CM4 module?
This will help us diagnose the problem accurately.
In the meantime, here are some support options:
Join our Discord for real-time help from our dev team and community: https://openterface.com/discord
Report the issue on GitHub so our developers can track and resolve it: https://github.com/TechxArtisanStudio/Openterface_QT
We really appreciate your patience and will work with you to get everything running properly.
