LED-Bug Series WLED LED Controller | SR + Mini

Meet LED-Bug, a compact LED controller series made for creators who want clean setups and powerful lighting control. 🎛️ Choose between LED-Bug SR and LED-Bug Mini (two models under one product), both designed for addressable LED strip control and DMX512 projects—great for installations, stage lighting, and creative builds.

Model Option: SR / Mini

🔥 Key Features

🌈 Programmable RGB LED Strip Control

Designed for programmable addressable RGB LED strips. Model support differs: SR supports single or dual signal line strips, while Mini supports single signal line strips.

🧩 DMX512 Support (MAX485)

Both models include onboard MAX485 for DMX512 support, ideal for DMX fixtures such as wall washers and other DMX lighting devices.

🎶 Music Rhythm Ready

LED-Bug SR includes a built-in digital microphone for sound reactive lighting effects and music rhythm projects.

🛠️ Maker Friendly

Great for makers and developers—supporting common development workflows such as Arduino IDE and PlatformIO (model dependent).

🔍 Choose Your Model

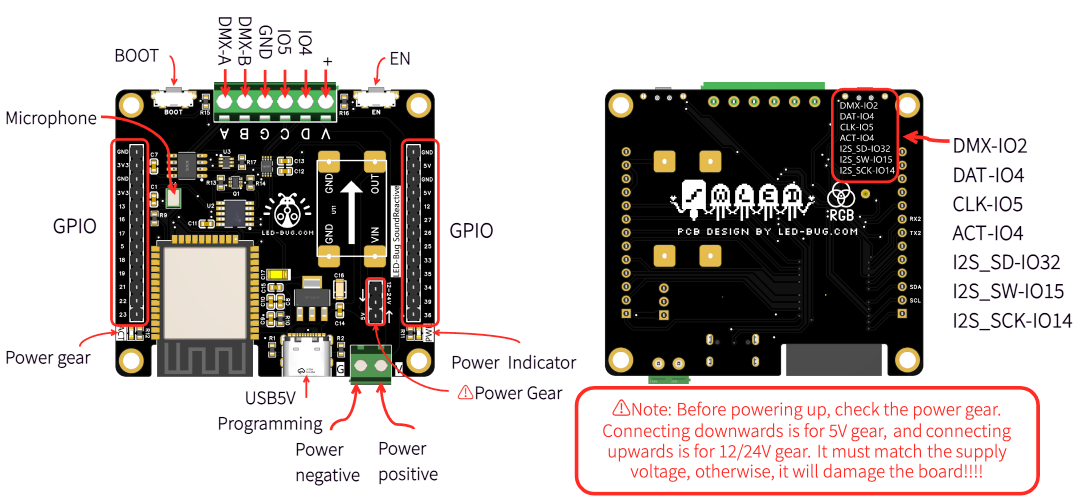

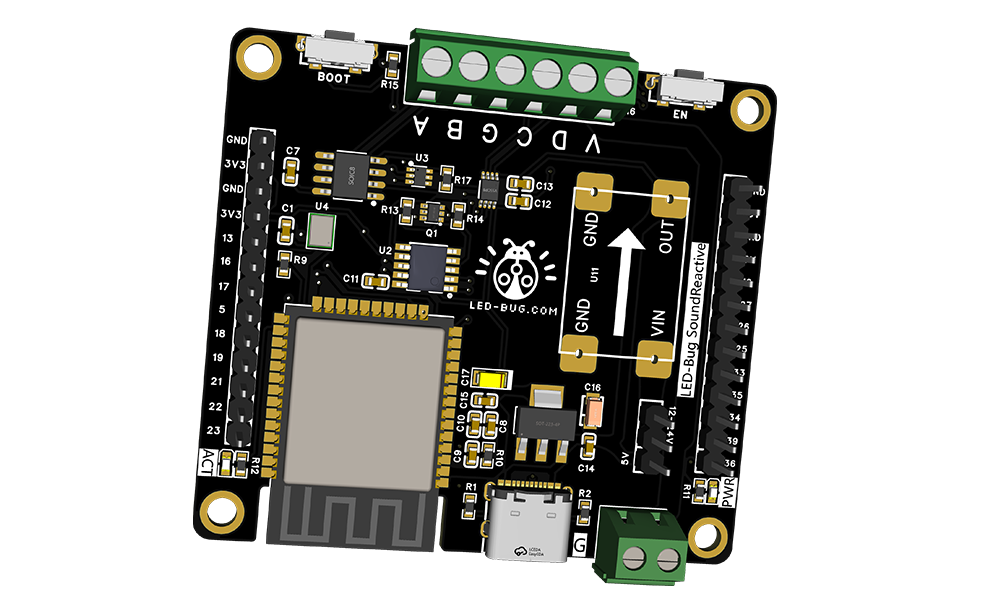

🚀 Option 1: LED-Bug SR (More Powerful + More Expandable)

• 🧠 Main Controller: ESP32-WROOM-32E/4M
• 🎵 Music Rhythm: Built-in digital silicon microphone

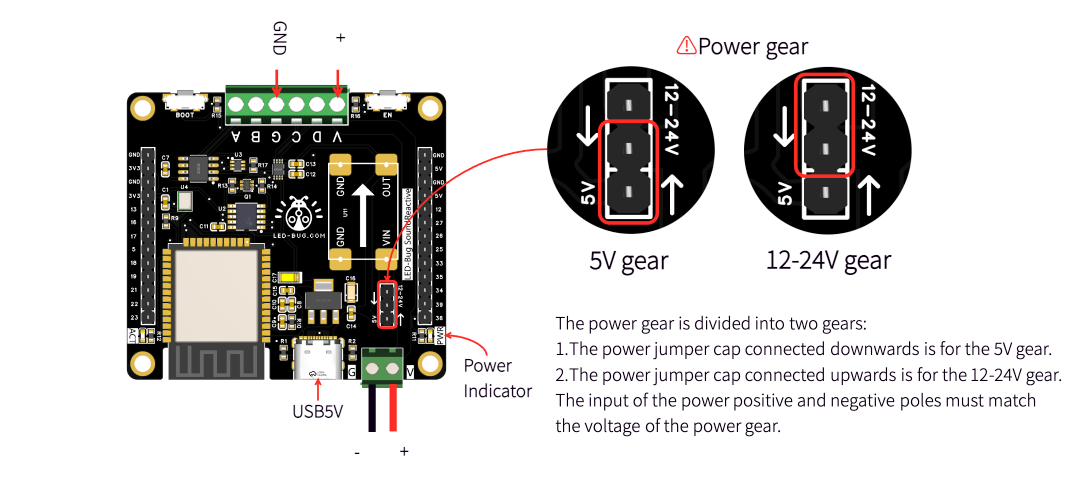

• ⚡ Operating Voltage: 5V / 12V / 24V (switchable)
• 🔋 Max Load Current: 3A

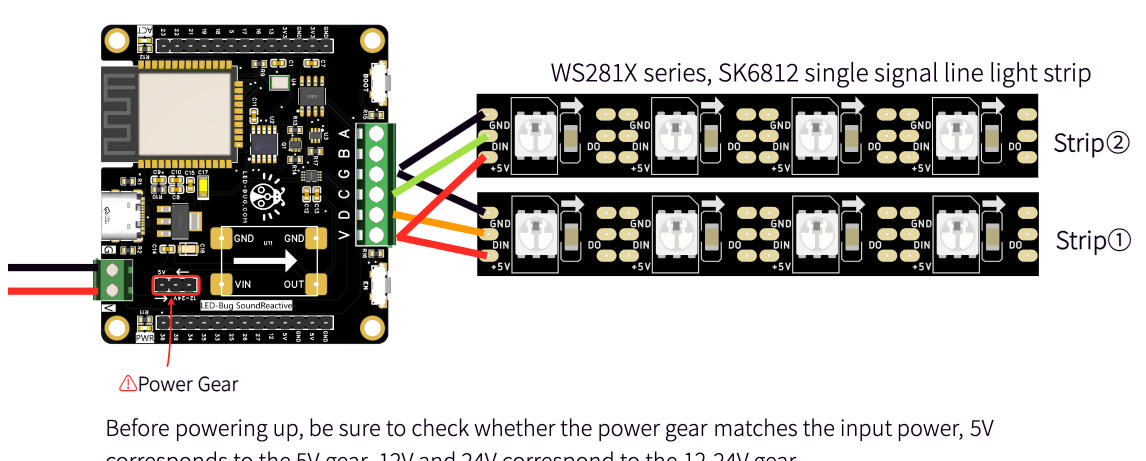

• 💡 Compatible Strips: Single or dual signal line programmable RGB strips + DMX512 strips
• 🔥 Operating Temp: -40°C to 85°C
• 📏 Recommended LEDs: 500 to 800 per channel

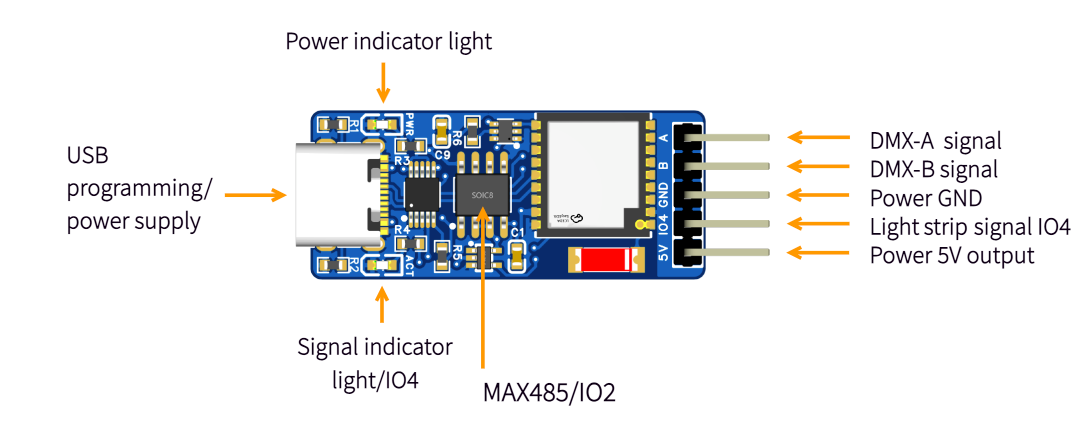

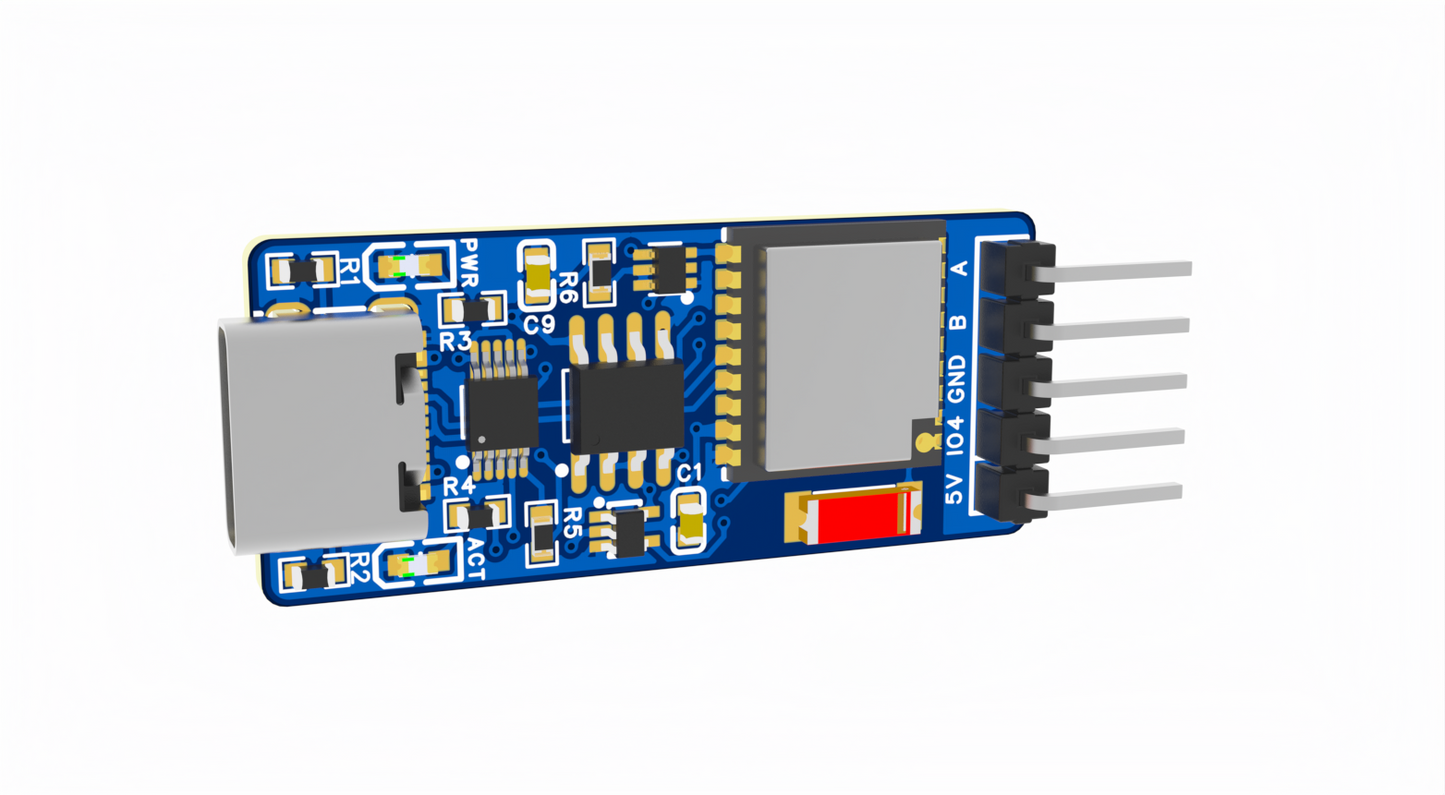

🧊 Option 2: LED-Bug Mini (Smaller + Simple Builds)

• 🧠 Main Controller: ESP01F

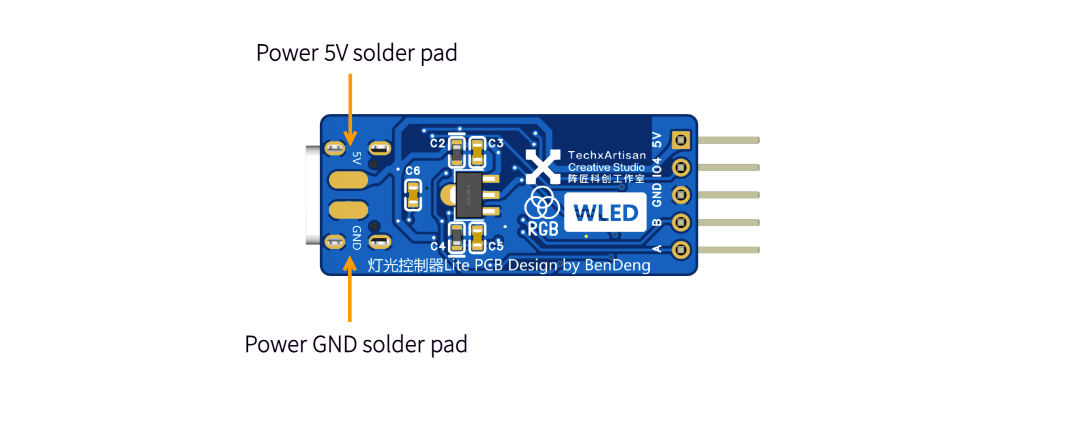

• ⚡ Operating Voltage: 5V
• 🔋 Max Load Current: 2A
• 💡 Compatible Strips: Single signal line programmable RGB strips + DMX512 strips
• 🔥 Operating Temp: -40°C to 85°C
• 📏 Recommended LEDs: 500 to 800 per channel

📦 Specifications

• Series: LED-Bug
• Model Options: LED-Bug SR / LED-Bug Mini
• DMX512: Supported (MAX485 onboard)
• Recommended LEDs: 500 to 800 per channel (both models)
• SR Voltage: 5V / 12V / 24V (switchable)
• Mini Voltage: 5V (controller operating voltage)
• SR Max Load Current: 3A
• Mini Max Load Current: 2A
• Operating Temperature: -40°C to 85°C

✅ Recommended Use Cases

• Installations & decorative lighting
  Clean wiring and flexible control for LED strips and DMX fixtures.
• Stage lighting & DMX setups
  Great for adding DMX512 control to creative lighting rigs.
• Music reactive projects
  Choose LED-Bug SR if you want built-in microphone driven effects.
• Compact builds
  Choose LED-Bug Mini for simpler, space-saving installs.

❗️ Important Notes

• Please select the correct model for your project needs: SR offers more features and expandability; Mini is compact and simpler.

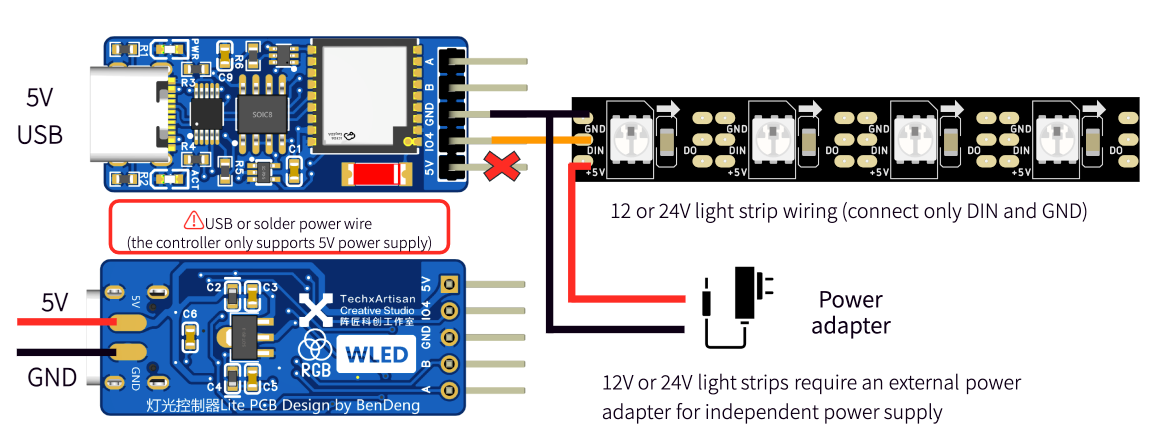

• Power requirements vary by model and LED strip type—make sure your power setup matches your LED strip and controller configuration.
• Recommended LED count is 500 to 800 LEDs per channel for best stability and performance.

If you have any questions about this product, feel free to contact us at shop@techxartisan.com. We are always happy to help!
